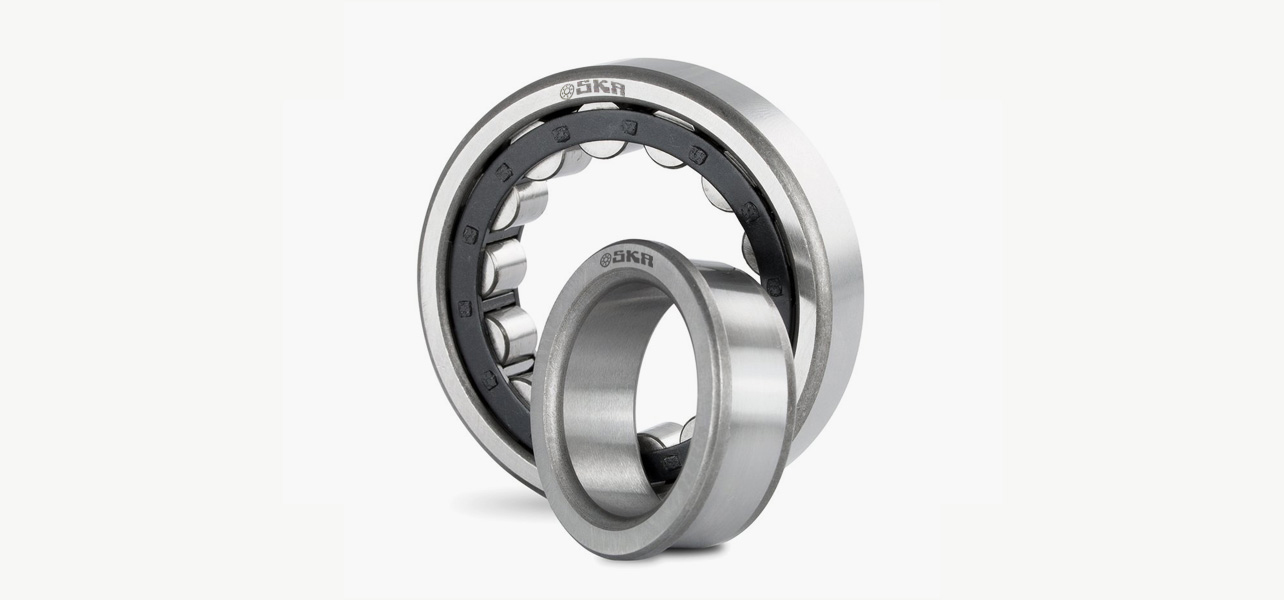

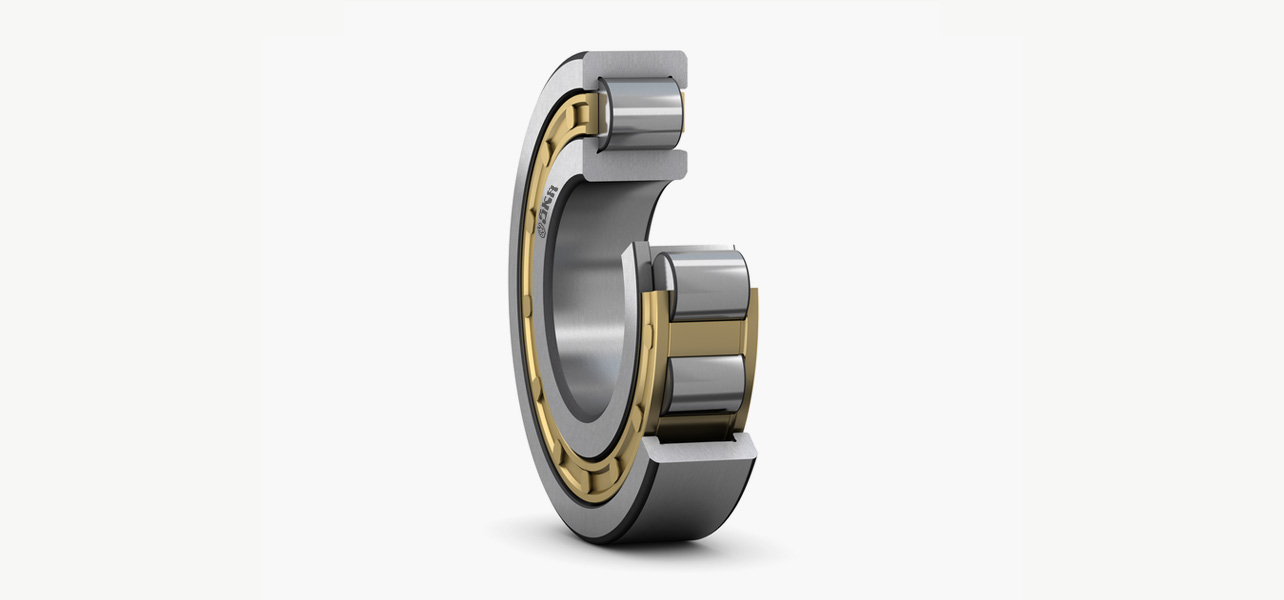

We are engaged in presenting an impeccable range of Cylindrical Roller Bearing. The offered bearing is developed in accordance with industry norms and quality parameters at our vendor’s end. In the offered bearing, all the components and material used have been approved and certified by agencies. In addition, this bearing can be built and developed according to the specification provided by the clients. Furthermore, our professionals opt for strict quality inspection made on the bearing to assure high performance.

Category:
Specification

Specification

BEARING MODEL BEARING DIMENSIONS
ID OD THICKNESS
CRL 6A 3⁄4 11⁄2 8⁄16
CRM 6A 3⁄8 2 11⁄16
CRL 7A 7⁄8 2 9⁄16
CRL 8A 1 21⁄4 5⁄8
CRM 8A 1 21⁄2 3⁄4
CRL 10A 11⁄4 23⁄4 11⁄16
CRM 10A 11⁄4 31⁄8 7⁄8
CRL 12A 11⁄2 31⁄4 3⁄4
CRM 12A 11⁄2 31⁄8 15⁄16
CRL 14A 13⁄4 33⁄4 13⁄16
CRM 14A 13⁄4 41⁄4 11⁄16
CRM 15A 17⁄8 41⁄2 11⁄16
CRL 16A 2 4 13⁄16
CRM 16A 2 41⁄2 1⁄16
CRL 18A 21⁄4 41⁄2 7⁄8
CRM 18A 21⁄4 5 11⁄4
CRL 20A 21⁄2 5 15⁄16
CRM 20A 21⁄2 51⁄2 11⁄4
CRL 22A 23⁄3 51⁄4 15⁄16
CRM 22A 23⁄3 61⁄4 13⁄8
CRL 24A 3 53⁄3 11⁄16
CRM 24A 3 7 19⁄16
CRL 26 MB 31⁄4 6 11⁄16
CRM 26 MB 31⁄4 71⁄2 19⁄16
CRL 28A 31⁄2 61⁄2 11⁄8
CRM 28 31⁄2 81⁄8 13⁄4
CRL 30 MB 33⁄4 63⁄4 11⁄8
CRM 30 MB 33⁄4 81⁄4 13⁄4
CRL 32 4 71⁄4 11⁄4
CRM 32 4 81⁄2 13⁄4
CRL 36 MB 41⁄2 8 15⁄16
CRM 36 41⁄2 93⁄8 2
CRM 38 43⁄4 10 2
CRL 40 5 9 13⁄8
CRM 40 5 10 2
CRM 44 51⁄2 11 2
BEARING MODEL BEARING DIMENSIONS
ID OD THICKNESS
NU 2203 EC 17 40 16
NU 204 EC 20 27 14
NU 2204 EC 20 77 18
NU 304 EC 20 52 15
NU 2304 EC 20 52 21
NU 205 EC 25 52 15
NU 2205 EC 25 52 18
NU 305 EC 25 62 17
NU 2305 EC 25 62 24
NU 206 EC 30 62 16
NU 2206 EC 30 62 20
NU 306 EC 30 72 19
NU 2306 EC 30 72 27
NU 207 EC 35 72 17
NU 2207 EC 35 72 23
NU 307 EC 35 80 21
NU 2307 EC 35 80 31
NU 208 EC 40 80 18
NU 2208 EC 40 80 23
NU 308 EC 40 90 23
NU 3208 EC 40 90 33
NU 209 EC 45 85 20
NU 2209 EC 45 85 23
NU 309 EC 45 100 27
NU 2309 EC 45 100 40
NU 210 EC 50 90 20
NU 2210 EC 50 90 23
NU 310 EC 50 110 27
NU 2310 EC 50 110 40
NU 211 EC 55 100 21
NU 2211 EC 55 100 25
NU 311 EC 55 120 29
NU 2311 EC 55 120 43
NU 212 EC 60 110 22
NU 212 EC 60 110 28
NU 212 EC 60 130 31
NU 212 EC 60 130 46
NU 213 EC 65 120 23
NU 2213 EC 65 120 31
NU 313 EC 65 140 33
NU 2313 EC 65 140 48
NU 214 EC 70 125 24
NU 2214 EC 70 125 31
NU 314 EC 70 150 35
NU 2314 EC 70 150 51
NU 215 EC 75 130 25
NU 2215 EC 75 130 31
NU 315 EC 75 160 37
NU 2315 EC 75 160 55
NU 216 EC 80 140 26
NU 2216 EC 80 140 33
NU 316 EC 80 170 39
NU 2316 EC 80 170 58
NU 217 EC 85 150 28
NU 2217 EC 85 150 36
NU 317 EC 85 180 41
NU 2317 EC 85 180 60
NU 218 EC 90 160 30
NU 2218 EC 90 160 40
NU 318 EC 90 190 43
NU 2318 EC 90 190 64
NU 219 EC 95 170 32
NU 2219 EC 95 170 43
NU 319 EC 95 200 45
NU 2319 EC 95 200 67
NU 220 EC 100 180 34
NU 2220 EC 100 180 46
NU 320 EC 100 215 47
NU 2320 EC 100 215 73
NU 221 EC 105 190 36
NU 321 EC 105 225 49
NU 222 EC 110 200 38
NU 2222 EC 110 200 53
NU 322 EC 110 240 50
NU 2322 EC 110 240 80
NU 224 EC 120 215 40
NU 2224 EC 120 215 58
NU 324 EC 120 260 55
NU 2324 EC 120 260 86
NU 226 EC 130 230 40
NU 2226 EC 130 230 64
NU 326 EC 130 280 58
NU 2326 EC 130 280 93
NU 228 EC 140 250 42
NU 2228 EC 140 250 68
NU 328 EC 140 300 62
NU 2328 EC 140 300 102
NU 230 EC 150 270 45
NU 2230 EC 150 270 73
NU 330 EC 150 320 65
NU 2330 EC 150 320 108
NU 232 EC 160 290 48
NU 2232 EC 160 290 80
NU 332 EC 160 340 68
NU 2332 EC 160 340 114
NU 234 EC 170 310 52
NU 2234 EC 170 310 86
NU 236 EC 180 320 52
NU 2236 EC 180 320 86
NU 238 EC 190 340 55
NU 2238 EC 190 340 92
NU 240 EC 200 360 58
NU 2240 EC 200 360 98
Features

Features

  • Dimensionally accurate
  • Quick installation
  • Corrosion resistance
Available Brands

Available Brands
