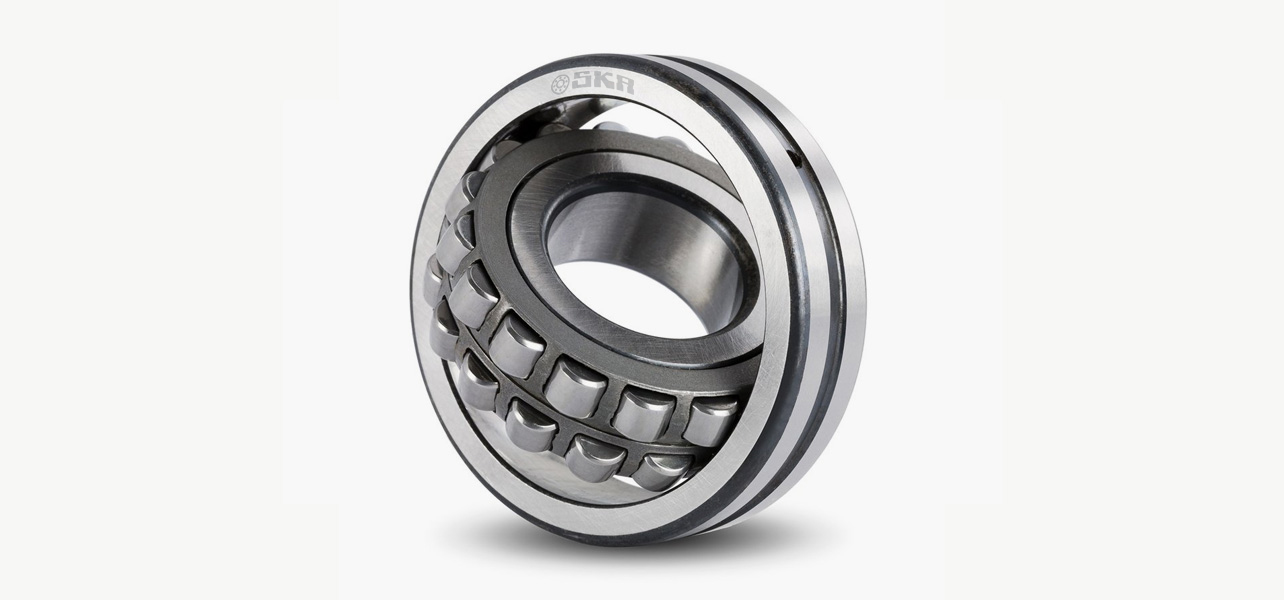

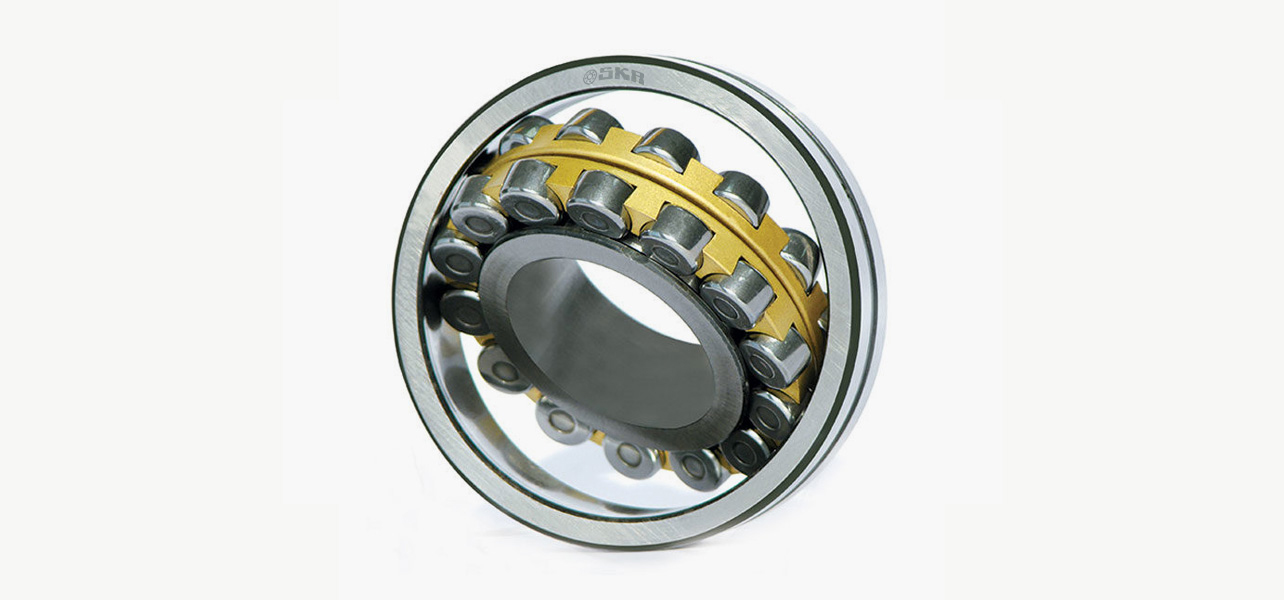

Spherical Roller Bearings

The Spherical Roller Bearings has two rows of rollers, a common spherical outer ring raceway, and two inner ring raceways inclined at an angle to the bearing axis. The center point of the sphere in the outer ring raceway is at the bearing axis.

Therefore, the bearings are self-aligning and insensitive to misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. Spherical roller bearings are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions.
